Retrofit Doors
#1 manufacturer in China. 1st one to use only automotive-grade glass for refrigeration & meet ISO 9001.

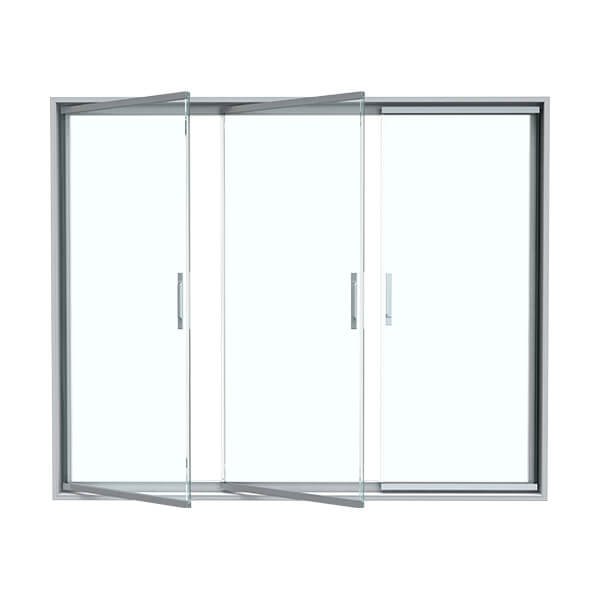

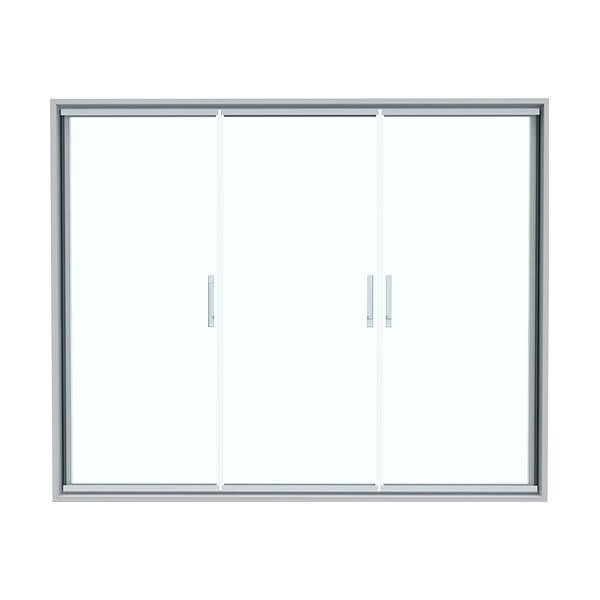

ACRYLIC FRAMELESS GLASS DOOR FD-01
Frameless retrofit glass door for supermarket multideck showcases—ultra-clear view with acrylic spacer, elegant slim handle, self-closing, energy-saving, and fully customizable. Boost product visibility and cut energy costs!
- Item No. FD-01
- MOQ: 10 PCS
- Payment Term: T/T, L/C
- Production Time: 21 days for production after order confirmation
- Loading Port: Guangzhou, China
- Customization: Branding logo, customized dimensions and packaging
Standard Features
- Double layer tempered glass with argon gas (Cooler 0~10℃)
- Silk screen printing edges
- Acrylic spacer for more visibility
- Slim handle design, fashion and elegant
- Self-closing hinge system for energy saving
- PVC Magnetic frame gasket for airtight seal
- Sealing strips
- Custom dimensions
Optional Features
- Customized logo
- Temperature sensor for energy saving
- Low-E glass
- Heating glass

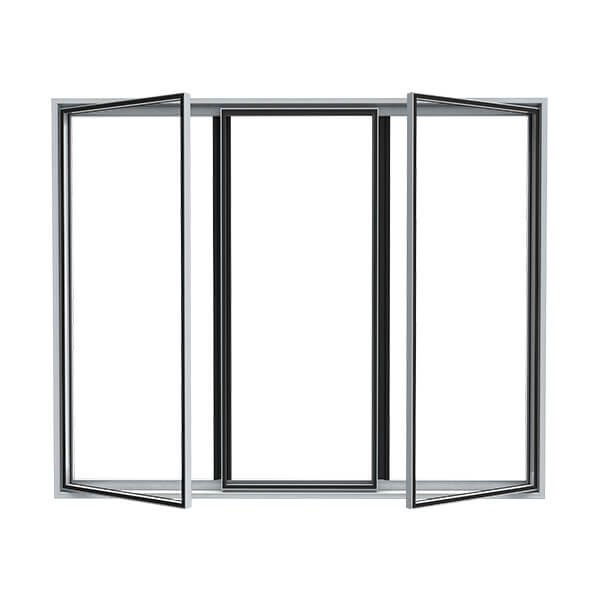

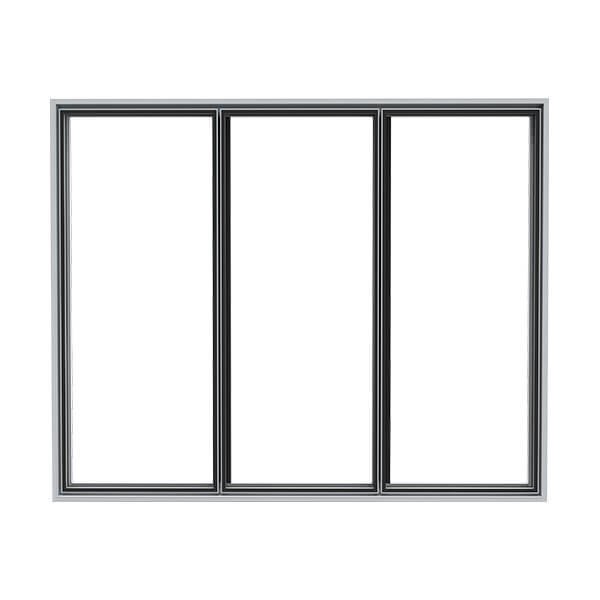

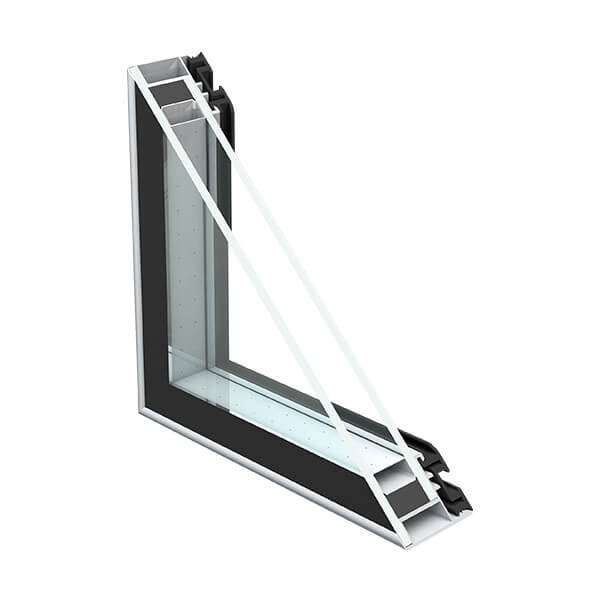

22MM WIDE FRAMELESS GLASS DOOR FD-02
Frameless retrofit glass door for supermarket multidecks—sleek aluminum design with LED lighting, push bar, kick plate, and energy-saving tech. Built for durability, visibility, and effortless cold aisle upgrades.
- Item No. FD-02
- MOQ: 10 PCS
- Payment Term: T/T, L/C
- Production Time: 21 days for production after order confirmation
- Loading Port: Guangzhou, China
- Customization: Branding logo, customized dimensions and packaging
Standard Features
- Double tempered glass with argon gas(Cooler)

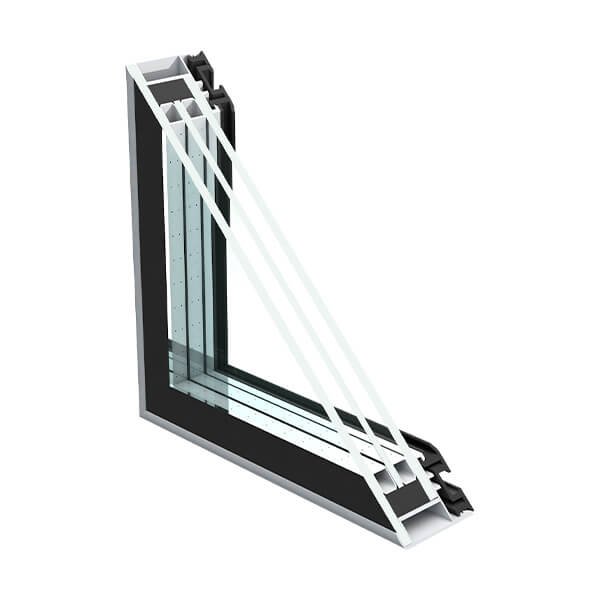

- Triple tempered glass with argon gas(Freezer)
- Aluminum Alloy Profile Frame
- Exclusive Design Hinge System
- Door hold-open function for easy loading
- 90° Door stop feature, minimize impact with adjacent doors and shoppers
- PVC magnetic gasket for airtight seal
- Led Lighting system for inside goods display
- Sealing Strips
- Diamond Tread Kick Plate and Push Bar
- Flat Aluminum Plate at the Bottom
Optional Features
- Reversible door system
- Cylinder lock Add-On
- Customized logo
- Temperature sensor for energy saving
- Color: Black, Silver
- Low-E glass
- Heating glass

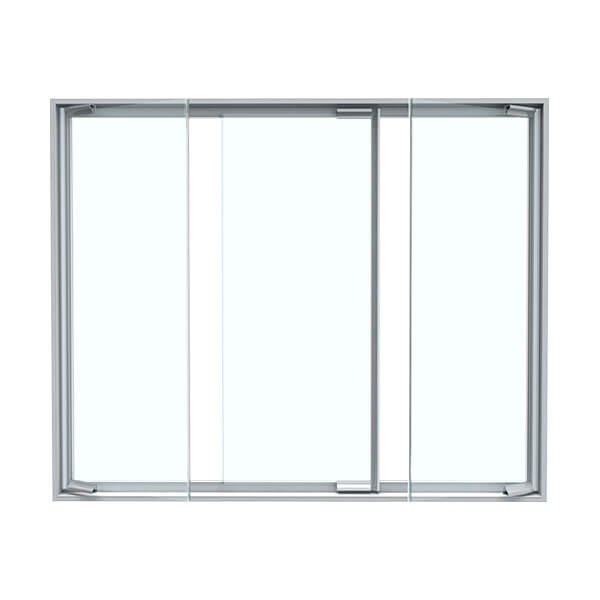

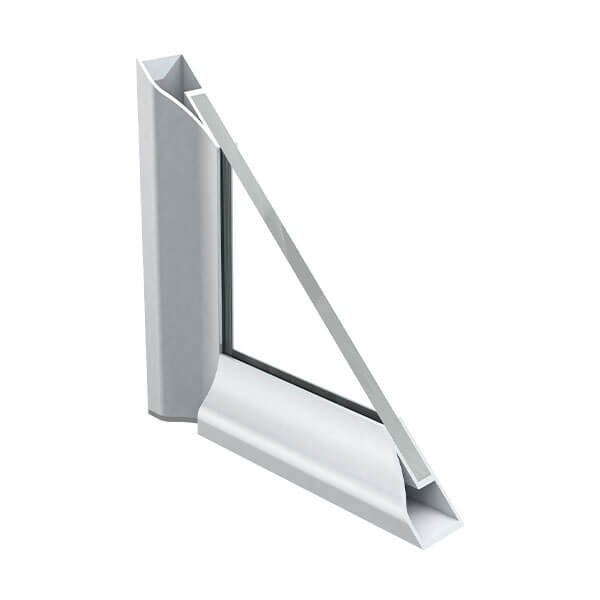

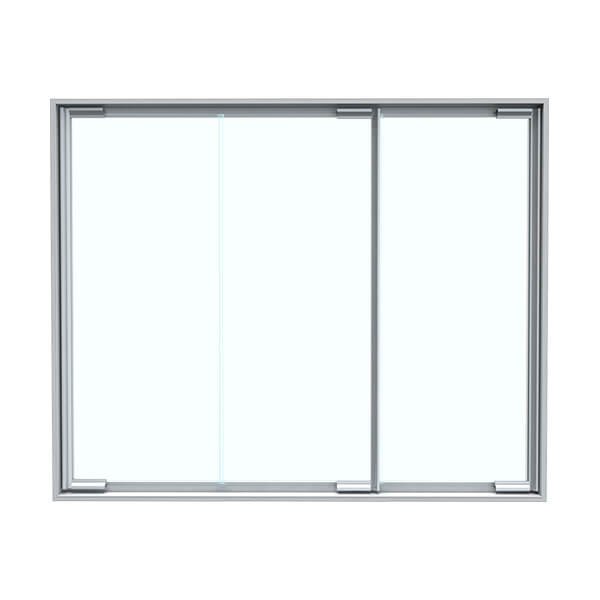

LAMINATED FRAMELESS GLASS DOOR FD-03
Laminated frameless glass door for supermarket multidecks—sleek, spacer-free design with elegant slim handle and strong seal. Energy-saving, stylish, and customizable to elevate cold aisle presentation and performance.
- Item No. FD-03
- MOQ: 10 PCS
- Payment Term: T/T, L/C
- Production Time: 21 days for production after order confirmation
- Loading Port: Guangzhou, China
- Customization: Branding logo, customized dimensions and packaging
Standard Features
- Double layer tempered glass (Cooler)
- Without spacer
- Silk screen printing edges
- Slim handle design, fashion and elegant
- Self-closing hinge system for energy saving
- PVC Magnetic frame gasket for airtight seal
- Sealing strips
- Custom dimensions
Optional Features
- Customized logo
- Temperature sensor for energy saving
- Low-E glass
- Heating glass
FAQs
How to get the drawings of the retrofit doors and installation kits?
To issue the drawing of the retrofit doors and installation kits details, please provide the detailed structure drawing of the chiller cabinet, including the front upper and bottom ventilation area structures (better in DWG format).
If you don‘t have the cabinet drawings and have not retrofitted the doors before, please provide the detailed dimensions and photos of some key parts, including:
- Front opening area (width and height)
- Front top ventilation area
- Front bottom ventilation area
If you don’t have the cabinet drawings but have retrofitted the doors before, please provide the dimensions from a cooler cabinet already retrofitted with glass doors.
- Glass door – overall height, width, and thickness
- Assembly frame – opening size (width/height), frame depth, and visible profile
- Upper and bottom metal pieces for installation – length, depth, thickness, and their position relative to the cabinet body/front edge
